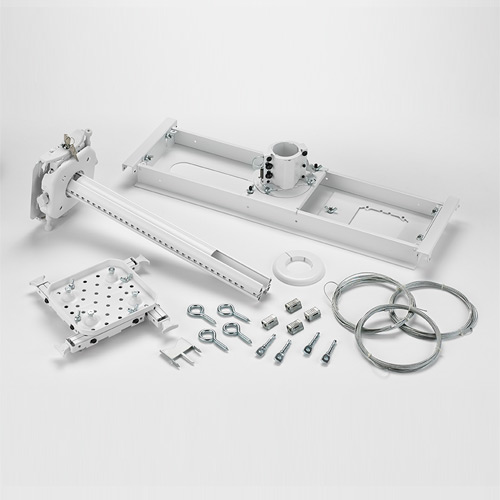

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
Features- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
SpecificationsAdjustments: | Roll, Pitch, Yaw (3°, 10°, 360°) |
---|
Certifications: | UL Listed |
---|
Color: | White |
---|
Extension: | 0 - 12" ( 0 - 304.8 mm) |
---|
Overall Dimensions (H x W x D): | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
---|
Shipping Weight: | 19.60 lbs |
---|
Solution Type: | Universal |
---|
Weight Capacity: | 35 lbs (15.9 kg) |
---|
|
|
